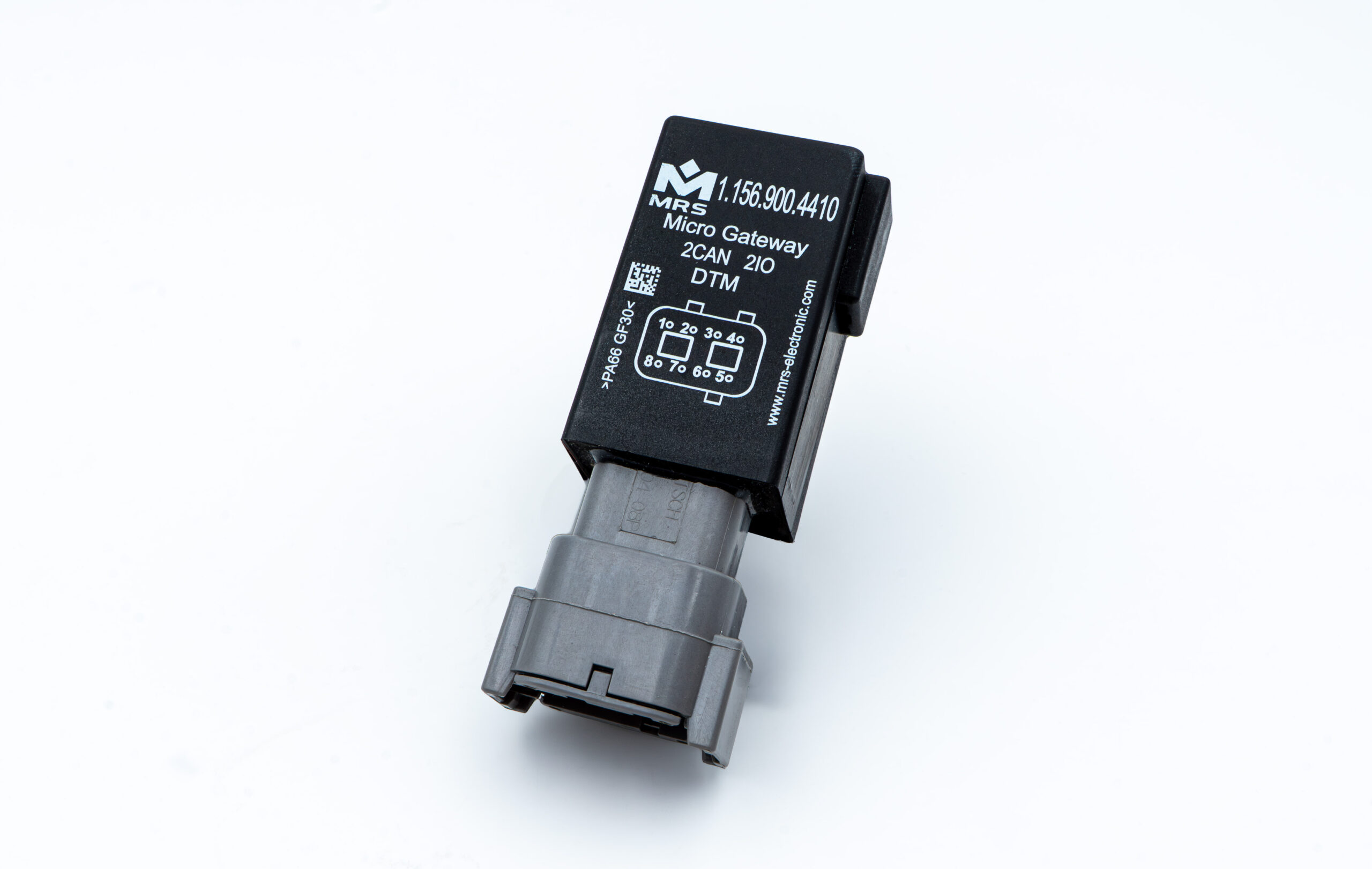

Micro Gateway DTM

SKU: 1.156.9

205,07  inc. VAT

All prices in order options

See order options
Description

The new Micro Gateway DTM with DEUTSCH DTM connector is a compact gateway for automotive applications. The core component, the 32-bit processor, provides you with higher performance and therefore secure routing and gateway functionality with a high bus load.

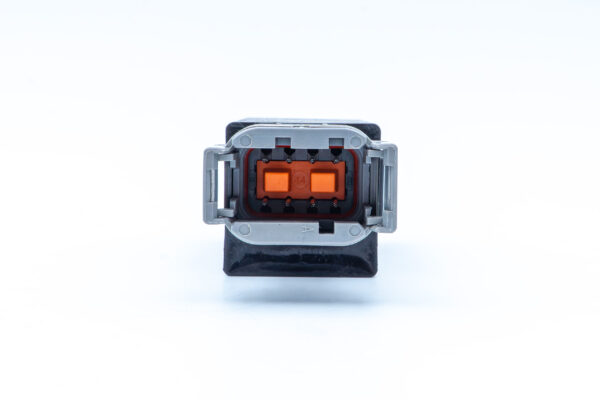

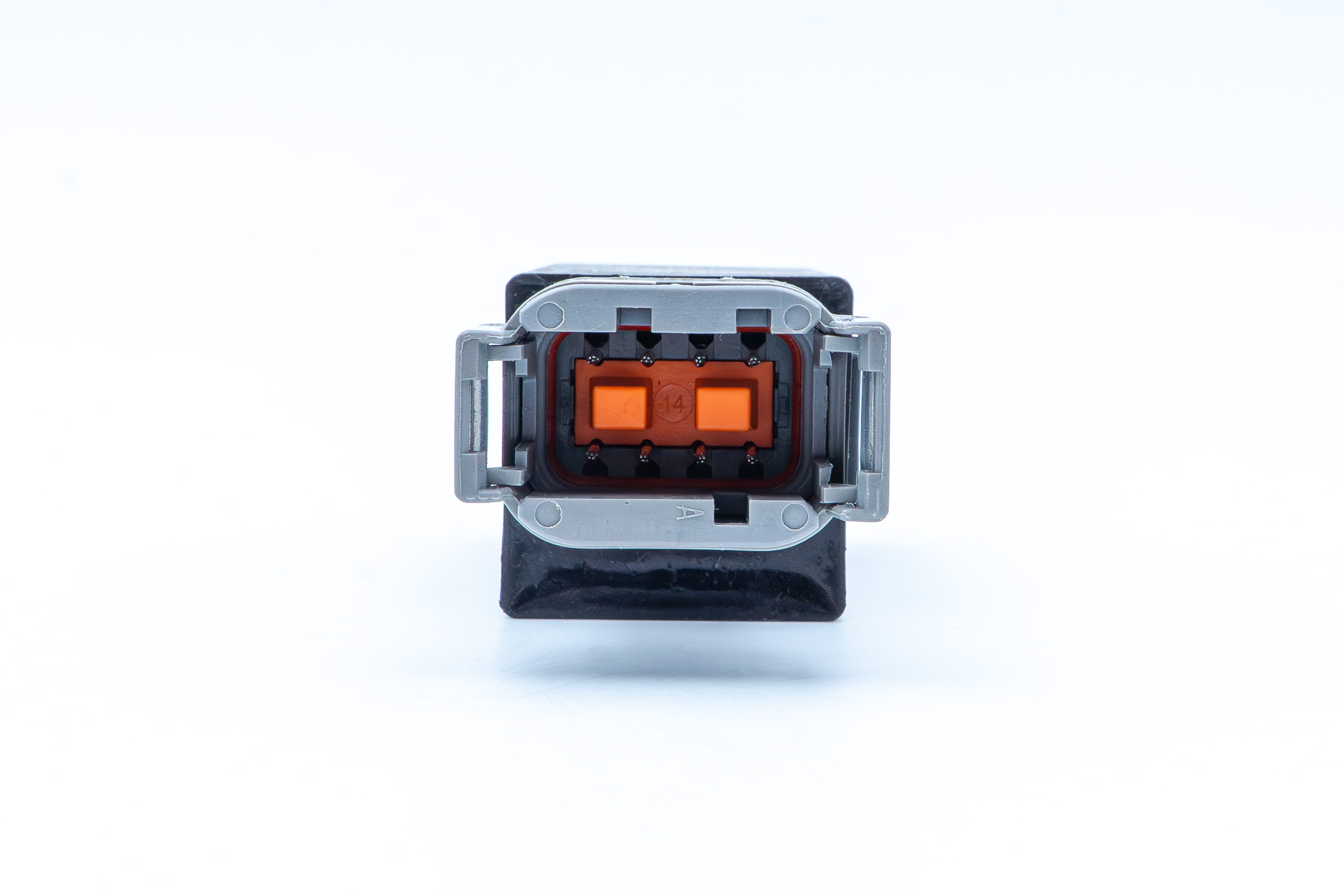

In combination with the DEUTSCH DTM connector, it offers you robust quality and is ideally suited for extreme environmental conditions.

Additional information
Inputs & Outputs
Number of pins: 8
In-/Outputs (total): 2
I/Os (total): 2
I/Os (Input analog): 2
I/O (Output PWM capable): 4
Interfaces
CAN interface(s): 1
CAN FD interface(s): 1
Programming
Programming software: MRS Applics Studio
Mechanical properties
IP rating: up to IP6K8
Housing material: PA 66GF30
General information
Temperature range: -40 °C to +85 °C
Operating voltage: 9-32 V
Current consumption: 70 mA
Quiescent current (12V): 80 µA
Quiescent current (24V): 100 µA
Product safety
Downloads
Data sheet Micro Gateway DTM (German)
Data sheet Micro Gateway DTM (English)
STEP Model (3D) 1.156.9x
Order options
Order No.
Name
Order No.
1.156.900.4410
Name
2xCAN 2x I/O's KL30 DTM
205,07  inc. VAT
