CC27WP

SKU: 1.169

600,91 € – 989,96 € inc. VAT

plus Shipping Costs

Clear

All prices in order options

See order options
Description

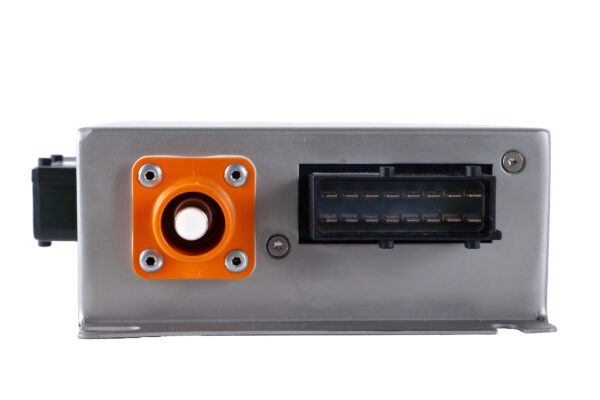

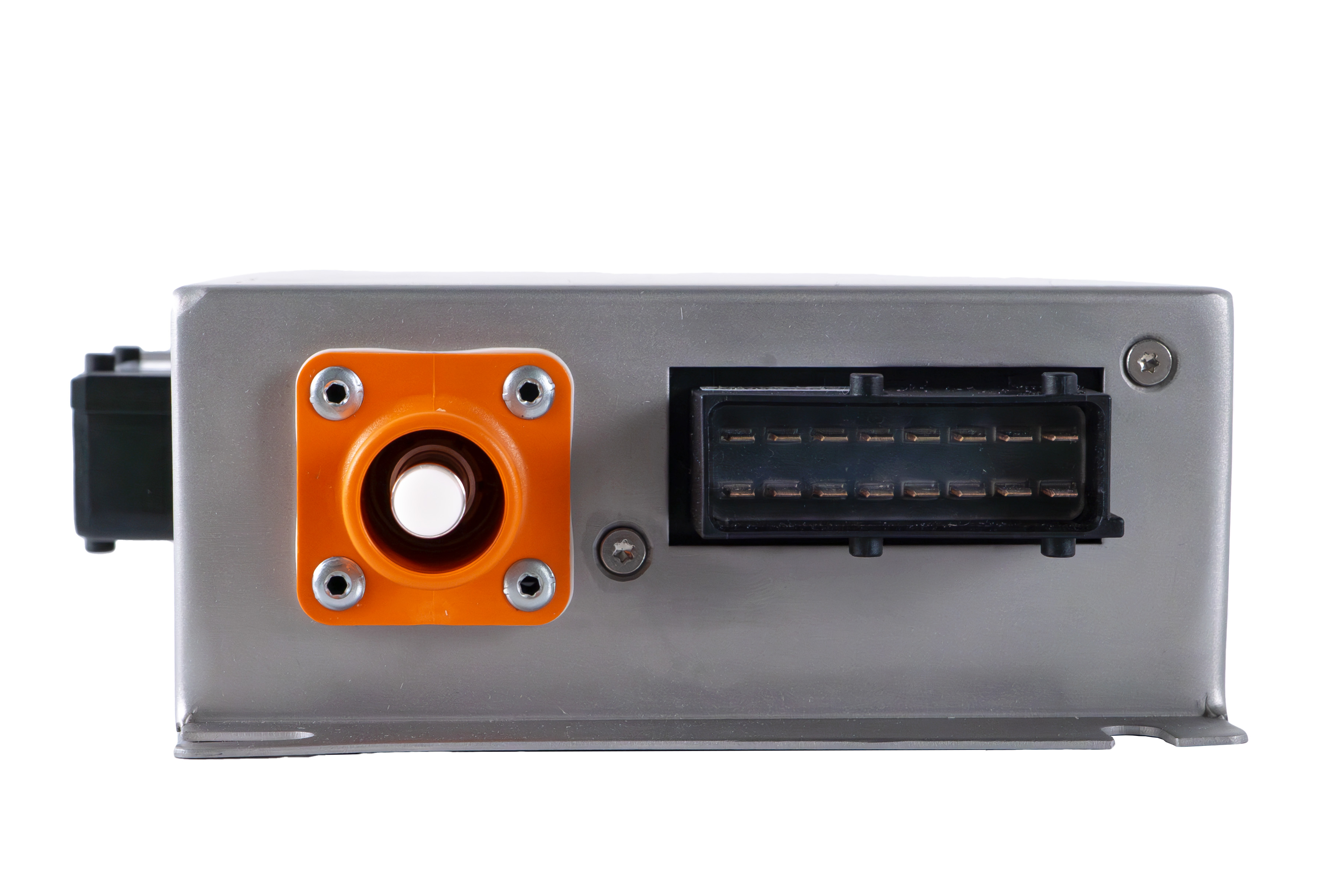

The CC27WP is a powerful and robust 32-bit controller that offers you 27 inputs and outputs in the basic version, 16 of which are freely configurable I/Os with voltage and current diagnostics. There are 2 CAN interfaces and 4 half bridges for controlling DC motors. With its 7 multifunctional inputs, you can also switch the measuring range, measure the frequency or activate a switchable pull-up resistor and a switchable current sink.

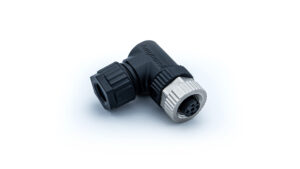

The power extension offers you an additional 16 I/Os as well as an optional third CAN interface via the M12 connector. The CC27WP is particularly suitable for your vehicles with many consumers to be controlled and high load currents. It continuously records the current of the loads and can switch them off if a defined value is exceeded. This means you do not need a classic fuse box. The control unit can be expanded into an operable system using an HMI system.

Additional information
Inputs & Outputs
Number of pins: 42
Inputs (total): 7
Inputs (analog): 7
In-/Outputs (total): 27
I/Os (total): 16
I/O (Output PWM capable, integrated current measurement INA): 4
I/O (Output PWM capable): 12
Switching current: ∑ 135 A
Interfaces
CAN interface(s): 3
CAN FD interface(s): 3
LIN interface(s): 1
Serial Interface(s): RS232, RS485
Programming
Programming software: MRS Applics Studio
Mechanical properties
IP rating: IP6K8
Housing material: V4A
Dimensions: 200 × 119.4 × 50 mm
General information
Temperature range: -40 °C to +85 °C
Operating voltage: 9-32 V
Current consumption: 40 mA @ 24 V/ 60 mA
Quiescent current (12V): 300 µA
Quiescent current (24V): 600 µA
Processor architecture: 32 bit
More
Halfbridge: 4
Analog input (optionally): 1
Product safety

Downloads
Data sheet CC27WP Basic (German)
Download
Data sheet CC27WP Basic (English)
Download
Data sheet CC27WP Power (German)
Download
Data sheet CC27WP Power (English)
Download
Operating instruction Connected Controllers
Download
Order options
Order No.
Name
Order No.
1.169.300.0200
Name
2xCAN; Basic variant; LIN Master KL30; Multi IN 1-4 Pullup=KL30; Multi IN 5-7 Pullup=Vref
682,63 € inc. VAT
Order No.
1.169.300.1200
Name
2xCAN; Basic variant; LIN Slave KL30; Multi IN 1-4 Pullup=KL30; Multi IN 5-7 Pullup=Vref
600,91 € inc. VAT
Order No.
1.169.300.2200
Name
2xCAN; Basic variant; LIN Master 12 V; Multi IN 1-4 Pullup=KL30; Multi IN 5-7 Pullup=Vref
682,63 € inc. VAT
Order No.
1.169.300.0110
Name
2xCAN; Basic variant with Power Piggy; LIN Master KL30; Multi IN 1-7 Pullup=Vref
946,01 € inc. VAT
Order No.
1.169.300.0070
Name
3xCAN; Basic variant with Power Piggy; LIN Master KL30; Multi IN 1-7 Pullup=KL30; with 12 connector
989,96 € inc. VAT
Order No.
1.169.300.5200
Name
2xCAN; Basic variant; RS485; Multi IN 1-4 Pullup=KL30; Multi IN 5-7 Pullup=Vref
682,63 € inc. VAT
Order No.
1.169.300.4200
Name
2xCAN; Basic variant; RS232; Multi IN 1-4 Pullup=KL30; Multi IN 5-7 Pullup=Vref
682,63 € inc. VAT
