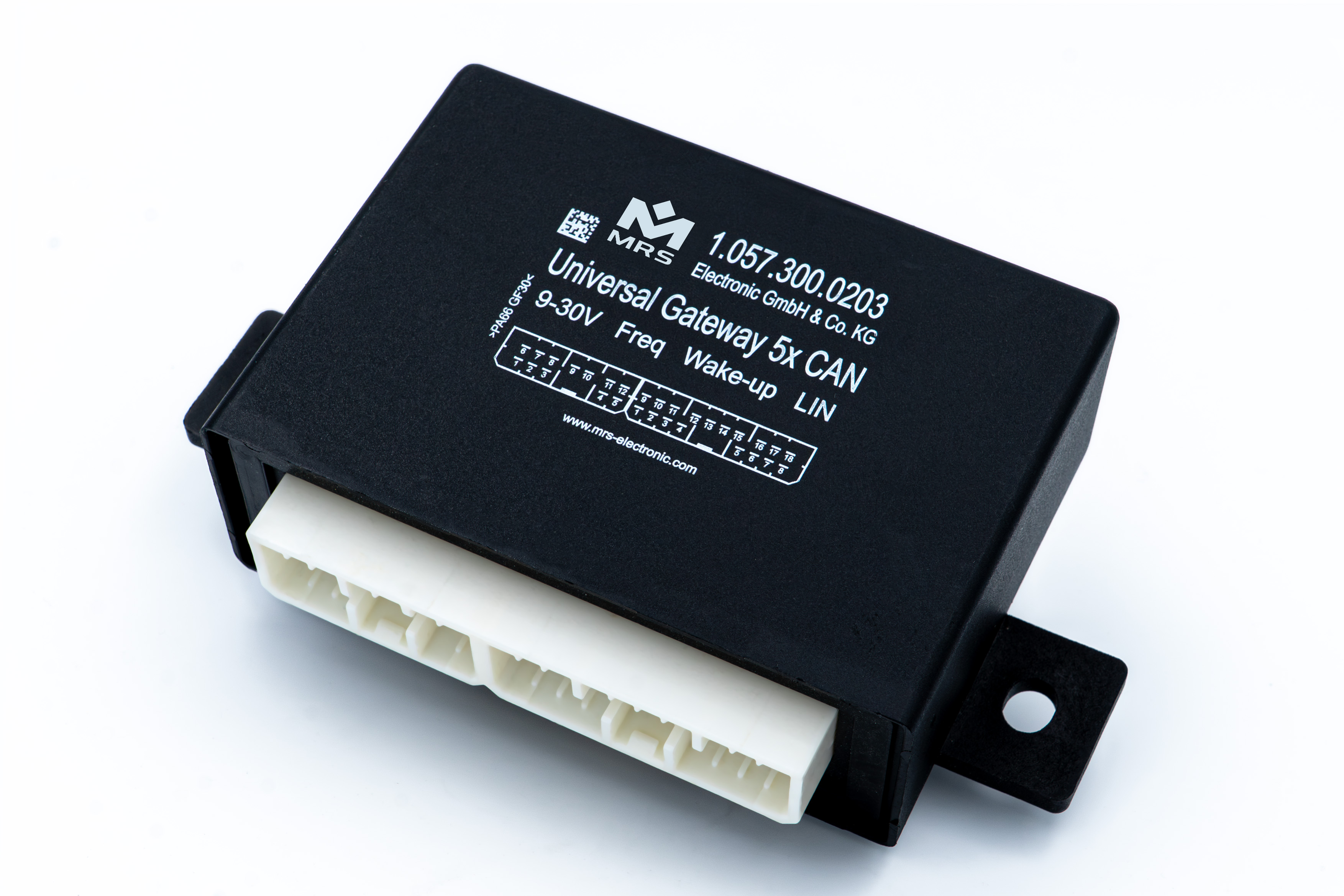

Universal Gateway 5x CAN - Image 1
Universal Gateway 5x CAN - Image 2
Universal Gateway 5x CAN - Image 3
Universal Gateway 5x CAN - Image 4
Universal Gateway 5x CAN - Image 5
Click to enlarge
Universal Gateway 5x CAN
Universal Gateway 5x CAN - Image 2
Universal Gateway 5x CAN - Image 3
Universal Gateway 5x CAN - Image 4
Universal Gateway 5x CAN - Image 5

Universal Gateway 5x CAN

SKU: 1.057.3xx.xx

310,44 € – 317,48 € inc. VAT

plus Shipping Costs

All prices in order options

See order options
Description

The Universal Gateway 5x Can by MRS allows data exchange between CAN-Bus systems. The open and flexible design, tailored to automotive applications, allows a quick adaptation to customer-specific requirements even for small quantities.

Additional information
Inputs & Outputs
Number of pins: 30
Inputs (total): 5
Inputs (analog): 1
Inputs (digital): 4
In-/Outputs (total): 9
Outputs (total): 4
Outputs (digital): 4
Switching current: 2.5 A
Interfaces
CAN interface(s): 5
Programming
Programming software: MRS Applics Studio
Mechanical properties
IP rating: IP54
Housing material: PA66GF30
Dimensions: 95 × 65 × 35 mm
General information
Temperature range: -40 to +85°C
Operating voltage: 9-32 V
Current consumption: 50 mA
Quiescent current (12V): 150 µA
Quiescent current (24V): 180 µA
Processor architecture: 16 bit
Product safety
Downloads
Data sheet Universal Gateway 5x CAN (German)
Download
Data sheet Universal Gateway 5x CAN (English)
Download
Operating instruction Gateways
Download
EU Declaration of Conformity
Download
Order options
Order No.
Name
Order No.
1.057.300.0000
Name
Housing without side-flaps
310,44 € inc. VAT
Order No.
1.057.300.0303
Name
Without CAN Wake Up, Wake Up via KL15
317,48 € inc. VAT
Order No.
1.057.300.0203
Name
FREQ + CAN-WU + LIN, With frequency inputs and LIN, CAN Wake Up
317,48 € inc. VAT
