With time relays adjustable the exact delay time can be set via potentiometer within the selected time range. You can choose from five time ranges by default (see table). We realize other time ranges on request. Please specify the desired time range when ordering.

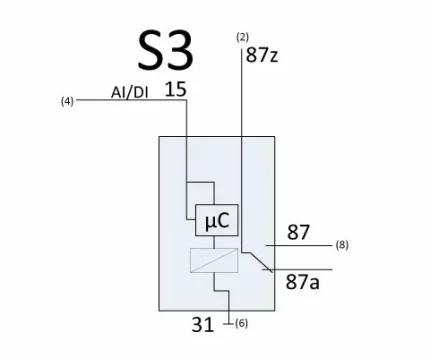

All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will move on after the set time has elapsed. If the voltage is removed at Terminal 15, the relay drops off immediately. Circuit diagram S2: The contacts are separate from the control and can therefore be used in links. Housing forms can be found in the section housing and basic body.
