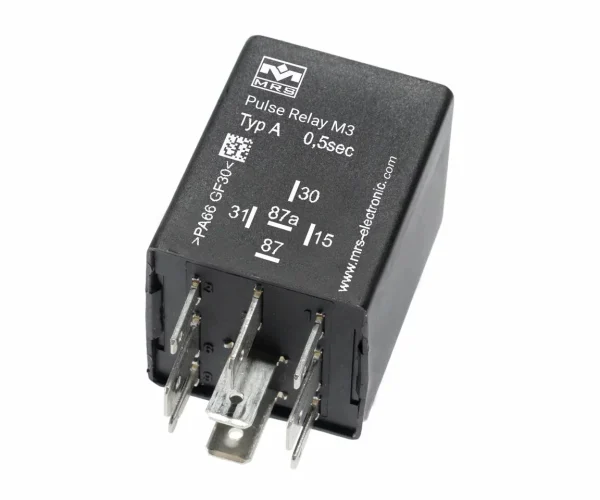

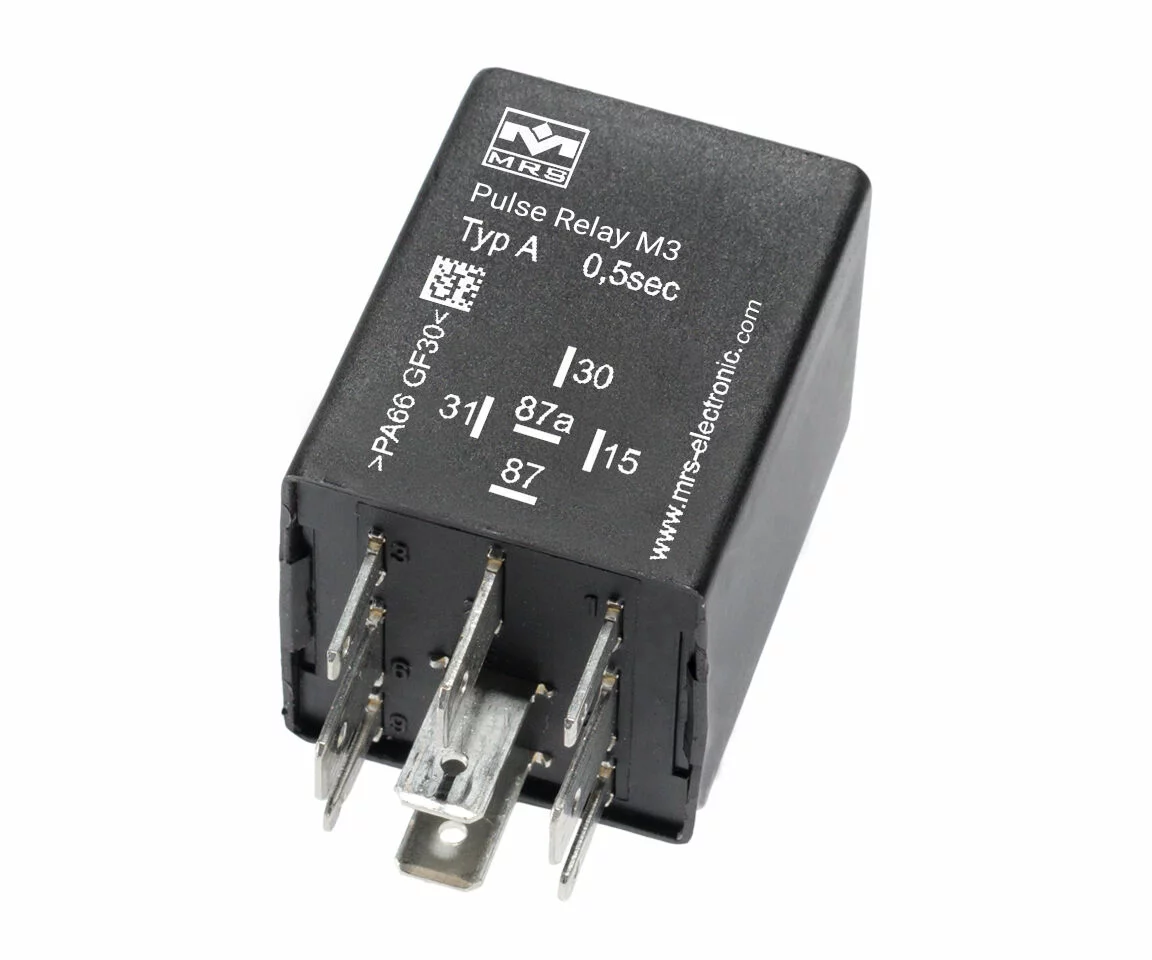

Pulse Relay M3 24 V

SKU: 1.002.29x

€52.07 inc. VAT

All prices in order options

See order options

SKU: 1.002.29x Categories: Relays, Pulse relays

Description

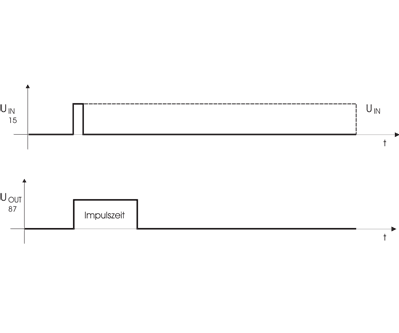

Pulse relay M3 are used when consumers are to be switched on or off for a defined time. Please specify the desired impulse time when ordering.

Technical details

Inputs & Outputs

Number of pins: 5
In-/Outputs (total): 2
Inputs (total): 1
Inputs (digital): 1
Outputs (total): 1
Relay outputs: 1
Switching current: NC 15 A / NO 15 A

Programming

Programming software: MRS Realizer

Mechanical properties

IP rating: IP53
Housing material: PA66GF30
Dimensions: 30 × 30 × 40 mm
Switching cycles: 50000

General information

Operating voltage: 14-32V
Temperature range: -40°C to +85°C
Current consumption: 2 ± 1 mA

Downloads

Data sheet Pulse Relay M3

Download

Operating instruction Pulse Relays

Download

Order options

ORDER No.

Name

Type

Connection

ORDER No.

1.002.291.xx

name

Individual pulse time

type

Connection

ORDER No.

1.002.292.xx

name

Individual pulse time

type

Connection

ORDER No.

1.002.293.xx

name

Individual pulse time

type

Connection
