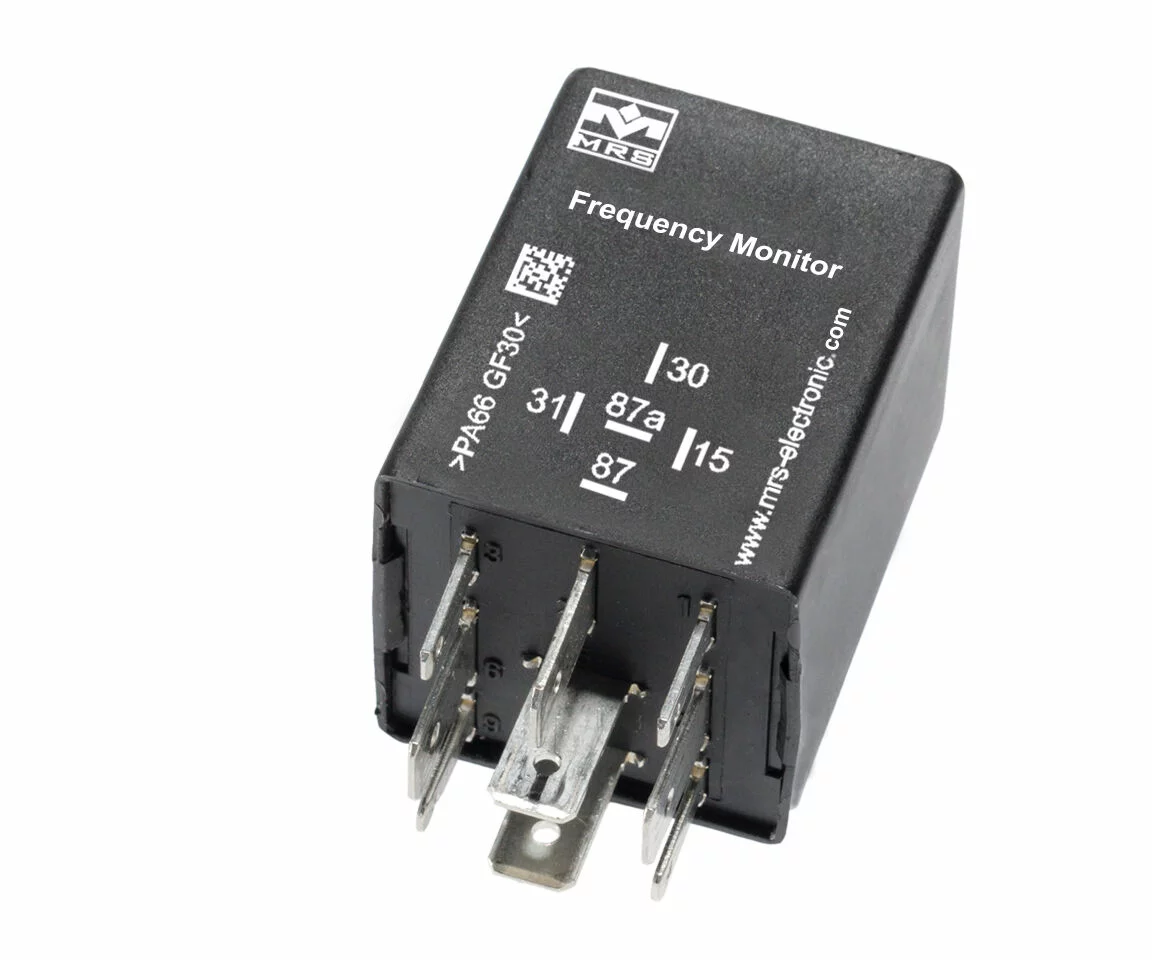

Frequency Monitor 12 V

SKU: 1.026.1x

€54.81 inc. VAT

All prices in order options

See order options

Description

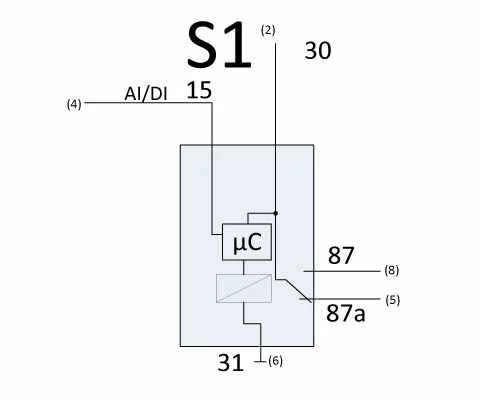

The frequency monitor measures the input signal frequency applied to terminal 15 and energizes/deenergizes the output when the signal frequency exceeds/drops below the defined threshold frequency. The threshold frequency can be selected from the 10 – 1.000 Hz frequency range. In addition, combinations including custom delay times are possible. Please refer to the chapter housing and base plates for additional housing options.

Technical details

Inputs & Outputs

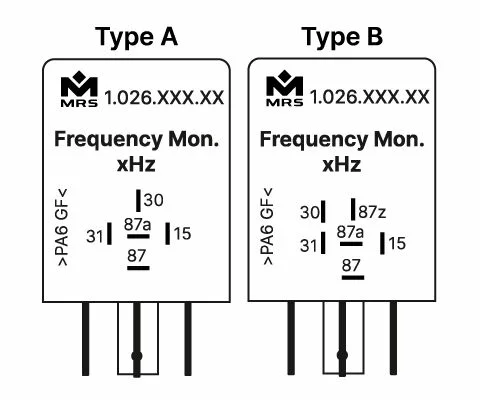

Number of pins: 5
In-/Outputs (total): 2
Inputs (total): 1
Inputs (digital): 1
Outputs (total): 1
Relay outputs: 1
Switching current: NO 15 A / NC 5 A

Programming

Programming software: MRS Realizer

Mechanical properties

IP rating: IP53
Housing material: PA66GF30
Dimensions: 30 × 30 × 40 mm
Switching cycles: 100000

General information

Operating voltage: 10-16V
Temperature range: -40°C to +85°C
Current consumption: 0.3 mA

Order options

ORDER No.

Name

Type

Connection

ORDER No.

1.026.111.xxx

name

Individual frequency

type

Connection

ORDER No.

1.026.112.xxx

name

Individual frequency

type

Connection

Frequency Monitor 12 V

Accessories

FASTON terminal latch 6.3 mm 1 mm²

FASTON terminal latch 2.8 mm 0.5 – 1.0 mm²

Housing Bracket

Socket package watertight 40 mm

FASTON terminal latch 6.3 mm 1.5 – 2.5 mm²

MRS Realizer

Socket ST FL 9-Pin
