In stock
Click to enlarge

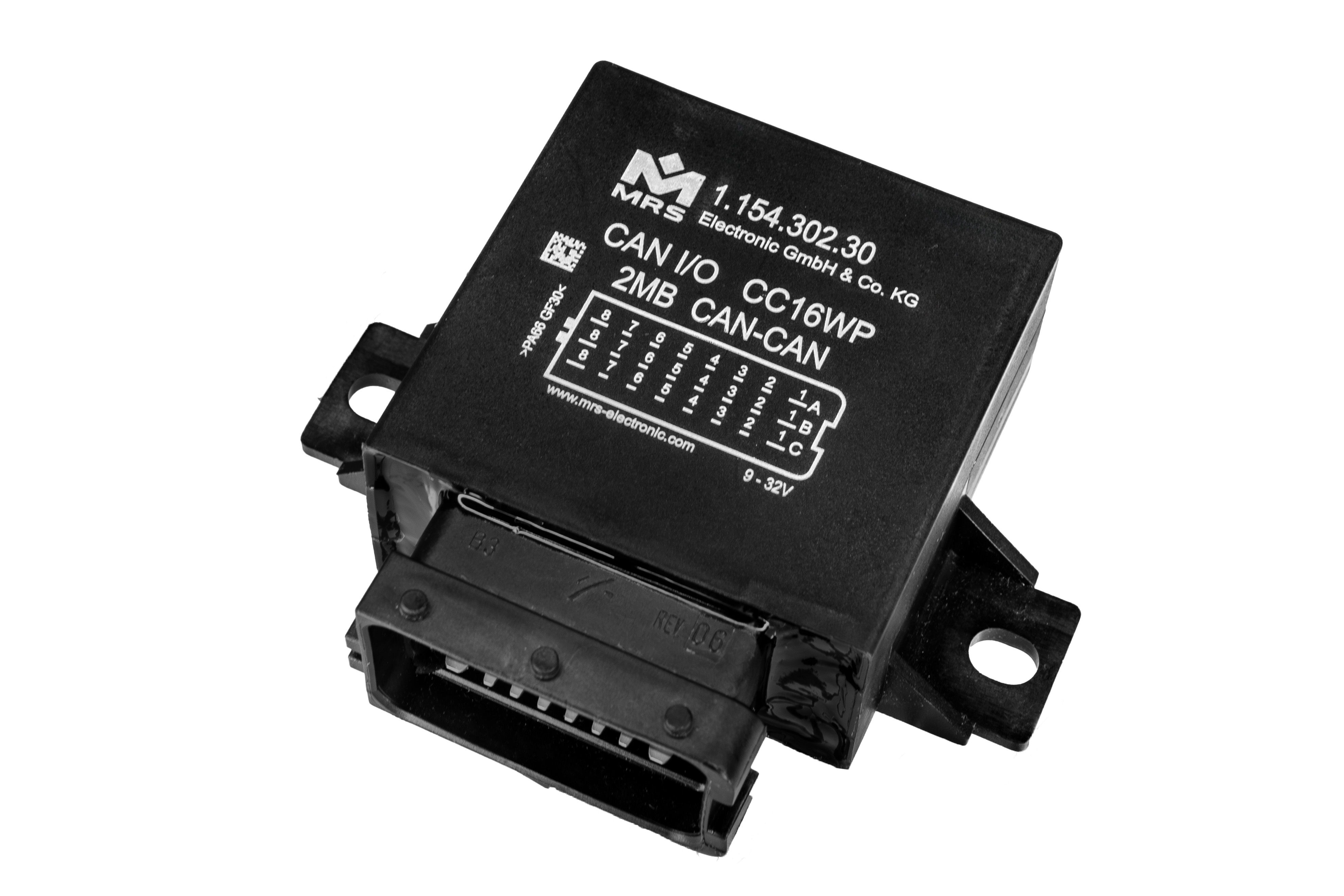

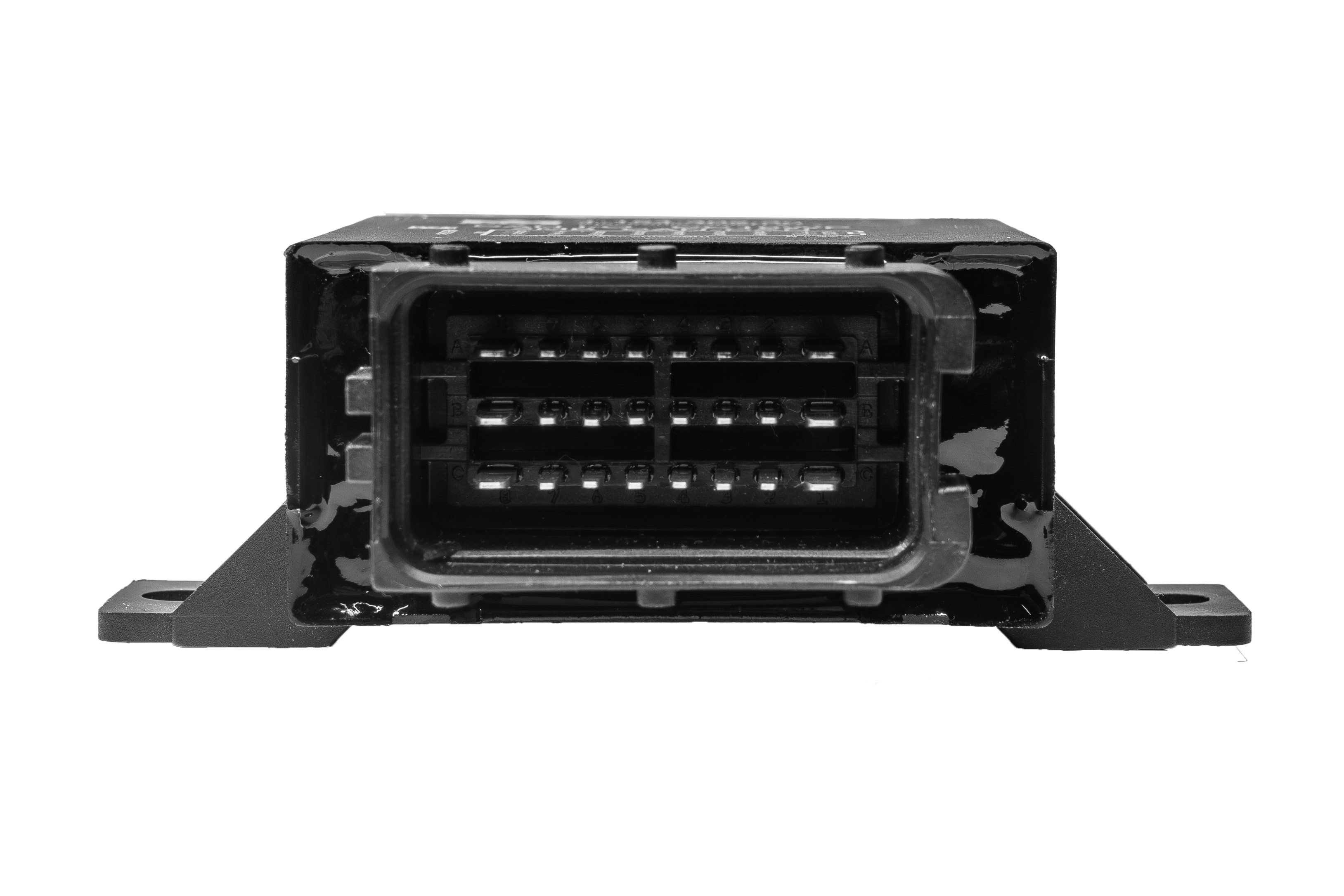

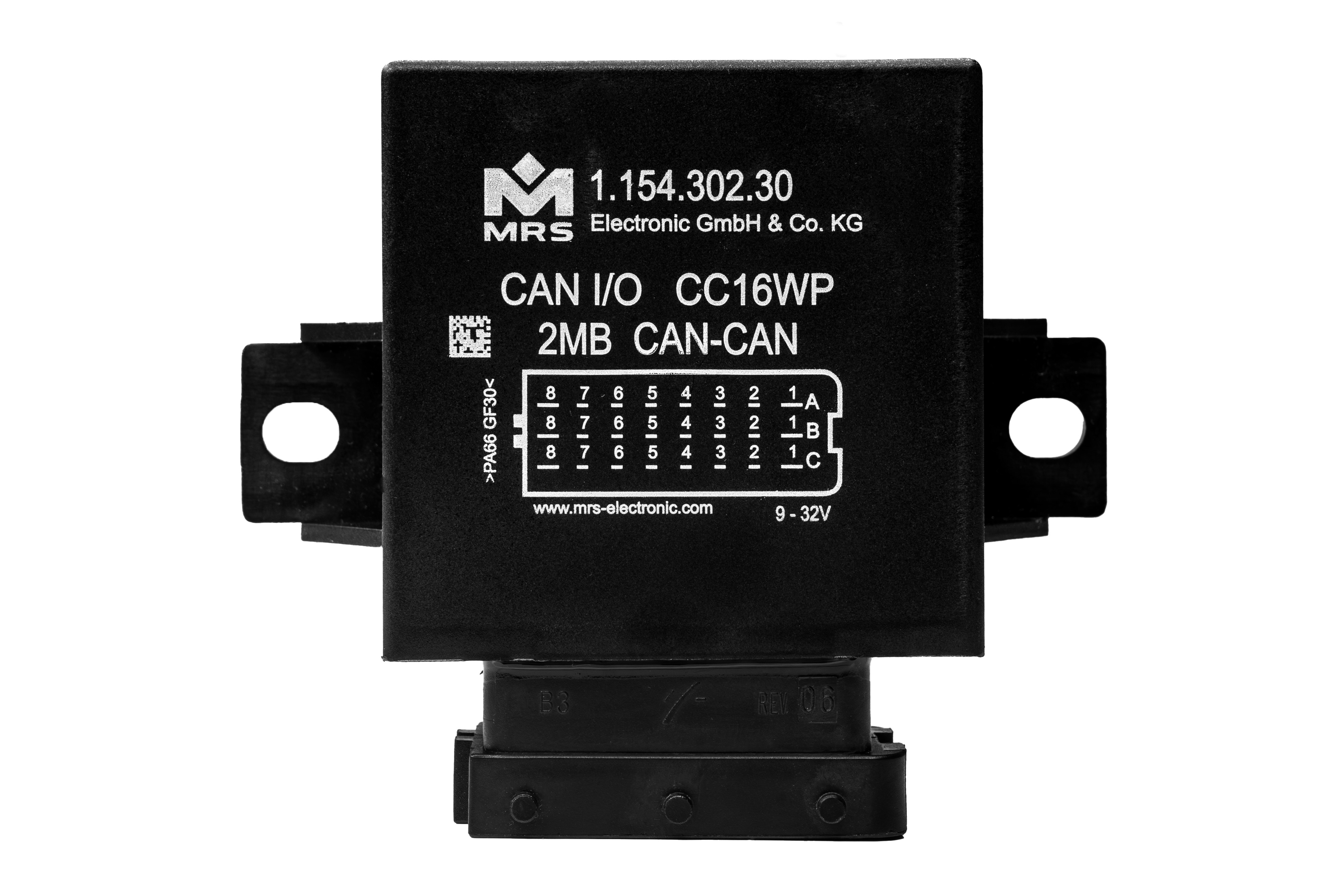

CAN I/O – CC16WP

SKU: 1.154.x

312,13 € – 327,82 € inc. VAT

plus Shipping Costs

All prices in order options

See order options
Description

The CC16WP is the best CAN I/O generation from MRS Electronic. The core piece, the 32-bit processor, provides you with more processing power and thus faster computing cycle times. You also benefit from more powerful gateway functionality and complex programming options for your applications. Due to the enormously high flexibility of the multifunction inputs, the CAN I/O is ideally equipped for a wide variety of cross-sector applications.
Overall, the CC16WP offers maximum application flexibility in the smallest installation spaces to achieve applications cost-effectively and efficiently. The high protection class IP6K8 can still be achieved with correct installation position. The AEF-certified order version with a 2 MB flash memory is also compatible with different ISOBUS stacks and can communicate with other linked components such as terminals or implements. The module is also CAN FD capable.

Additional information
Inputs & Outputs
Number of pins: 24
Inputs (total): 7
Inputs (analog): 7
In-/Outputs (total): 15
I/Os (total): 8
I/Os (Input analog): 8
I/O (Output PWM capable, integrated current measurement INA): 8
Output type high side: 8
Switching current: 3 A
Interfaces
CAN interface(s): 2
CAN FD interface(s): 1
LIN interface(s): 1
Serial Interface(s): 1
Programming
Programming software: MRS Applics Studio
Mechanical properties
IP rating: IP6K8
Housing material: PA66GF30
Dimensions: 60 × 77 × 30 mm
General information
Temperature range: -40 to +85°C
Operating voltage: 9-32 V
Quiescent current (12V): 25 µA
Quiescent current (24V): 25 µA
Vref current limit: 500 mA
Processor architecture: 32 bit
Product safety

Downloads
Data sheet CAN I/O – CC16WP (English)
Download
Data sheet CAN I/O – CC16WP (German)
Download
Operating instruction Connected Controllers
Download
EU Declaration of Conformity
Download
Order options
Order No.
Name
Order No.
1.154.300.00
Name
2x CAN
312,13 € inc. VAT
Order No.
1.154.310.00
Name
1x CAN, 1x LIN
312,13 € inc. VAT
Order No.
1.154.320.00
Name
1x CAN, 1x RS232
312,13 € inc. VAT
Order No.
1.154.300.10
Name
2x CAN, Electronics Supply KL15, Load Circuit KL30
312,13 € inc. VAT
Order No.
1.154.330.00
Name
1x CAN, 2x Digital Inputs
312,13 € inc. VAT
Order No.
1.154.211.00
Name
1x CAN, 1x LIN with 12V LIN-Level for 24V Supply Voltage
312,13 € inc. VAT
Order No.
1.154.302.00
Name
2x CAN, 2MB, AEF-certified
327,82 € inc. VAT
