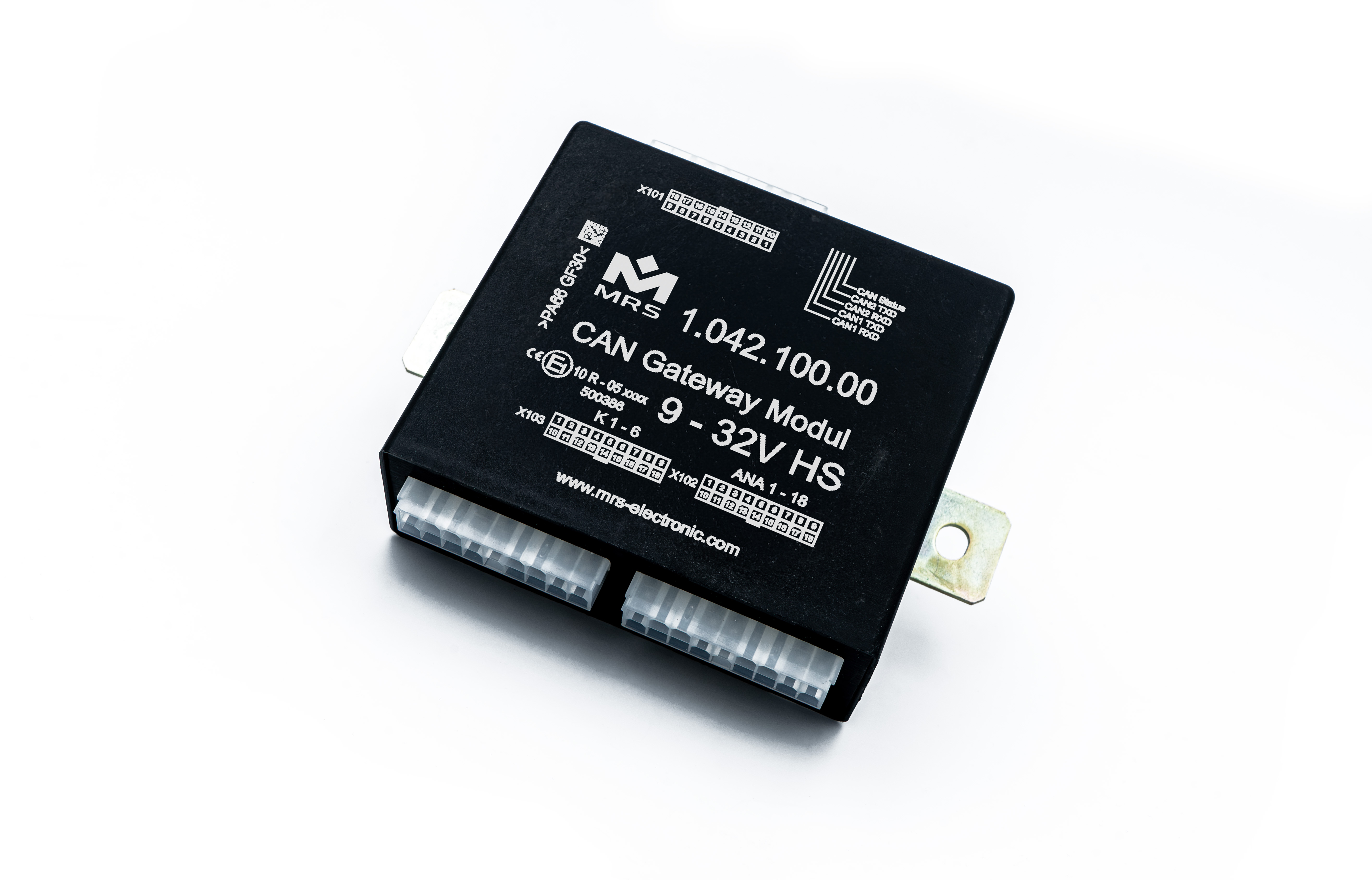

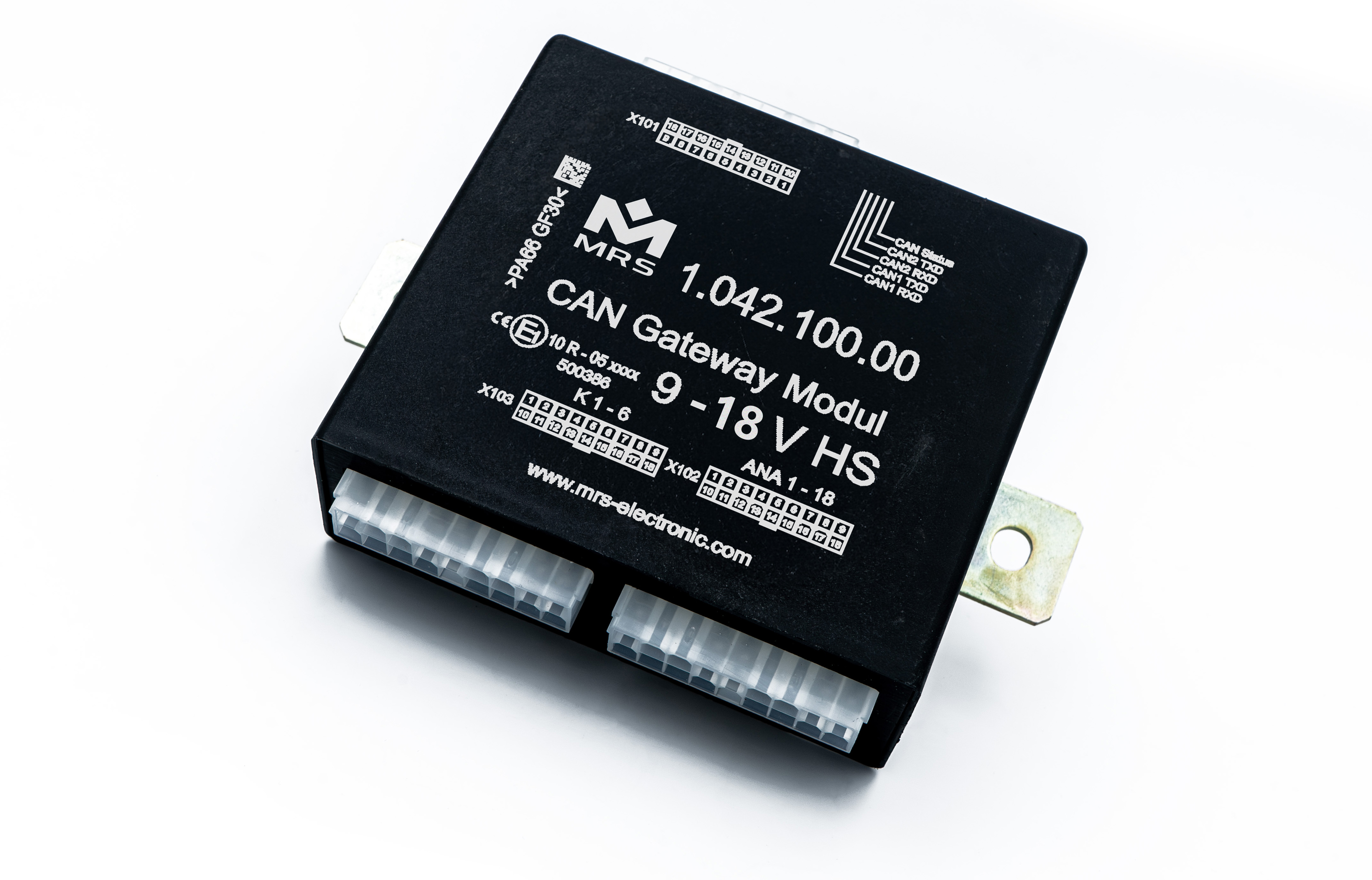

CAN Gateway Module

SKU: 1.042.1xx.xx

346,34 € inc. VAT

plus Shipping Costs

All prices in order options

See order options
Description

The compact car-compatible can gateway module with PLC function is used for the simple expansion of existing vehicle functions with low wiring requirements. It is freely programmable and equipped with 3 can interfaces.

Additional information
Inputs & Outputs
Number of pins: 54
Inputs (total): 20
Inputs (analog): 20
In-/Outputs (total): 30
Outputs (total): 10
Outputs (digital): 4
Relay outputs: 6
Switching current: 3 A
Interfaces
CAN interface(s): 3
Programming
Programming software: MRS Developers Studio
Mechanical properties
IP rating: IP53
Housing material: PA66GF30
Dimensions: 89 × 95 × 35 mm
General information
Temperature range: -40 to +85°C
Operating voltage: 9-18 V
Current consumption: 31.6 mA
Quiescent current (12V): 300 µA
Processor architecture: 16 bit
Product safety
Downloads
Operating instruction Gateways
Download
EU Declaration of Conformity
Download
Order options
Order No.
Name
Order No.
1.042.100.00
Name
3x high-speed
346,34 € inc. VAT
Order No.
1.042.110.00
Name
2x low-speed, 1 x high-speed
346,34 € inc. VAT
