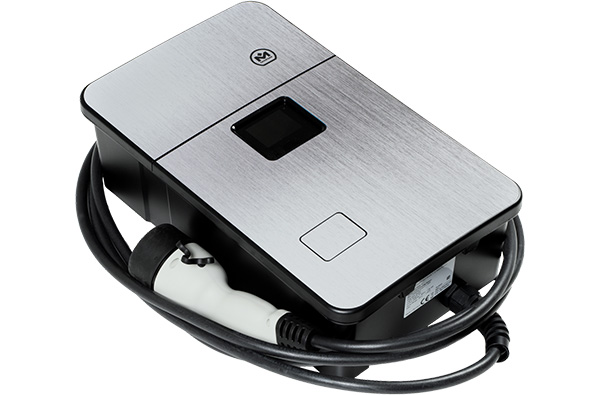

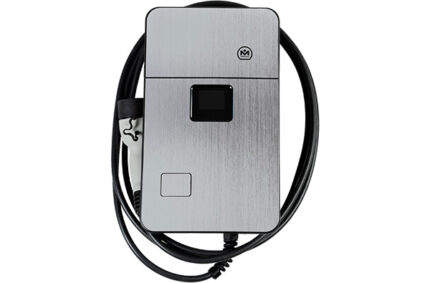

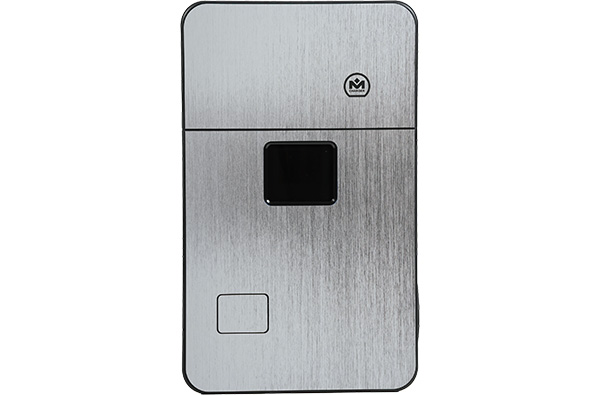

MCharger Easy

SKU: 1.801.

559,30 € – 654,50 € inc. VAT

plus Shipping Costs

Clear

All prices in order options

See order options
Description

No matter which electric car you prefer, our MCharger wallbox provides an easy charging experience. From simple installation process to user friendly interface with the color display. Choose the MCharger model that fits your needs, add our smartly designed accessories and enjoy the advantages of E-mobility to the fullest!
Charging power up to 22kW
– Color display
– IP55 protection
– Overvoltage protection
– Easy installation
– Electrical connection available from the back, top, or the bottom
– CE marking; RoHS, WEEE, IEC compliant
– Developed and manufactured in Germany

Additional information
Interfaces
CAN interface(s): 1
Mechanical properties
IP rating: IP55
Housing material: PC+ABS
Dimensions: 266 × 411 × 137 mm
General information
Temperature range: -25°C to +60°C
Operating voltage: 230 V (1ph) / 400 V (3ph)
More
Charging Power: 11 kW / 22 kW
Input Voltage: 230 V (1ph) / 400 V (3ph)
Rated Current: 16 A / 32 A
Mains frequency [Hz]: 50
Status display: 2,4″, colored
Connection type: Typ 2
Acoustic error warning: Acoustic error warning
DC fault detection 6 mA DC: DC fault detection 6 mA DC
Software update via cable: Software update via cable
KfW-eligible: 440 – private household
Product safety

Downloads
Data sheet MCharger Easy
Download
Catalogue MCharger
Download
Installation and operating manual MCharger Easy S
Download
Installation and operating manual MCharger Easy C
Download
Order options
Order No.
Name
Order No.
1.801.011
Name
Easy S 22 kW
559,30 € inc. VAT
Order No.
1.801.001
Name
Easy C 22 kW
654,50 € inc. VAT
Order No.
1.801.010
Name
Easy S 11 kW
559,30 € inc. VAT
Order No.
1.801.000
Name
Easy C 11 kW
595,00 € inc. VAT
